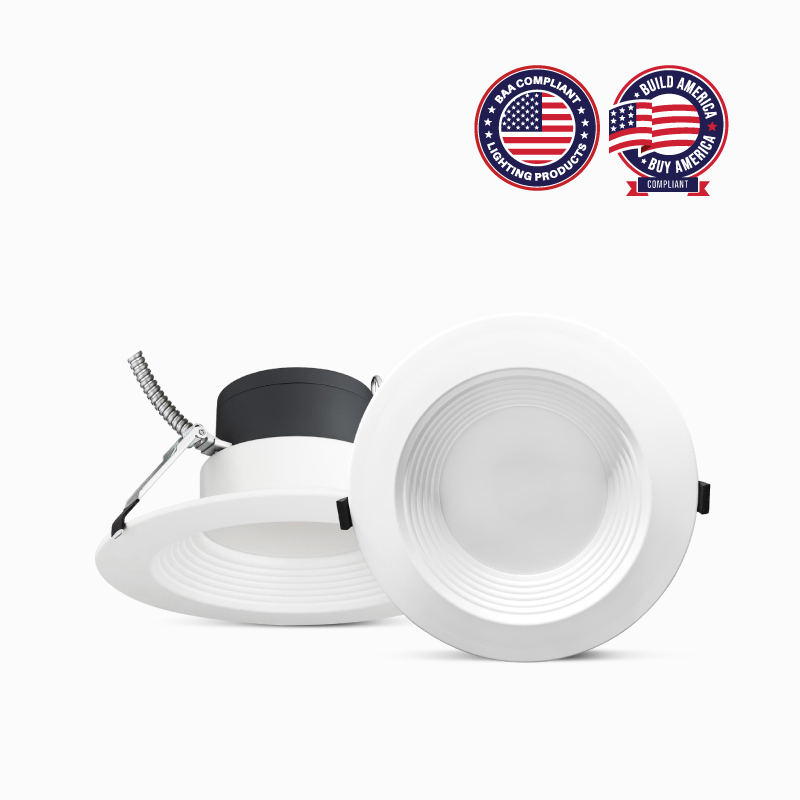

Orwin Downlight

The Orwin Downlight is a versatile lighting solution featuring
precisionengineered optics, ensuring uniform light

overview

Power  Selectable

6”  : 12W-17W-22W

8”  : 17W-24W-30W

10” : 22W-30W-38W

Voltage

AC 120-277V, 50/60 Hz

Power Factor

0.979

Efficacy

Up to 110lm/W

CCT Selectable

2700K-3000K-3500K-4000K-5000K

Color Rendering (CRI)

92

R9 (Red Value)

56

R13 (Skin Tones)

92

Beam Angle

100°

Light Distribution

Type VS

BUG Rating

B1-U2-G0

Dimmable

Continuous Dimming to 10% or Below

Operating Temperature

-14ºF ~ +122ºF

Suitable Location

WET

Ingress Protection Rating (IP)

IP44

Average Life (Hours)

50000

LED Light Source

Hongli 2385

Driver

DOB

Base

E26/GU24

Housing

Aluminum

Cover Material

Polycarbonate

Diffuser

Frosted

Finish

White

Product Details

Product Description

The Orwin Downlight is a versatile lighting solution featuring precisionengineered optics, ensuring uniform light distribution and eliminating shadows for a flawless ambiance. With power and CCT selectability, Orwin adapts to varied lighting needs, offering effortless control and superior performance. Leveraging streamlined production and rigorous quality validation, Orwin stands out for its unmatched durability and reliability, making it an ideal choice for federal projects.

Features

  • Premium quality with BAA & BABAA compliance, crafted using Tier-1 domestically sourced materials to meet the 65% federal procurement mandate.
  • Advanced CCT and power selectability ensures precise light management with validated color consistency.
  • Effective light distribution with no halos or shadows, ensuring smooth diffusion and comfortable optical performance.
  • Seamless integration with standard 0-10V dimming systems for precise lighting control.

Application Areas

Retail Stores, Restaurants, Hotels, Malls, Offices, Lobbies

Orwin

Product Specifications



Part Number Power Selectable (Options) Voltage Lumen Output Efficacy CRI Current CCT  Selectable THD Light Distrubution
  W V lm lm/W   A K
IK-RDL4-06-S0022-MV-D-CCT-WD-00-WH-BFU 12 120V-277V 1045 108 91.7 0.09 2700-3000-3500-4000-5000 >30% Type VS
17 1484
22 1790
IK-RDL4-08-S0030-MV-D-CCT-WD-00-WH-BFU 17 120V-277V 1615 110 93.6 0.12 2700-3000-3500-4000-5000 >30% Type VS
24 2160
30 2587
IK-RDL4-10-S0038-MV-D-CCT-WD-00-WH-BFU 22 120V-277V 2006 108 91.4 0.15 2700-3000-3500-4000-5000 >30% Type VS
30 2583
38 3199

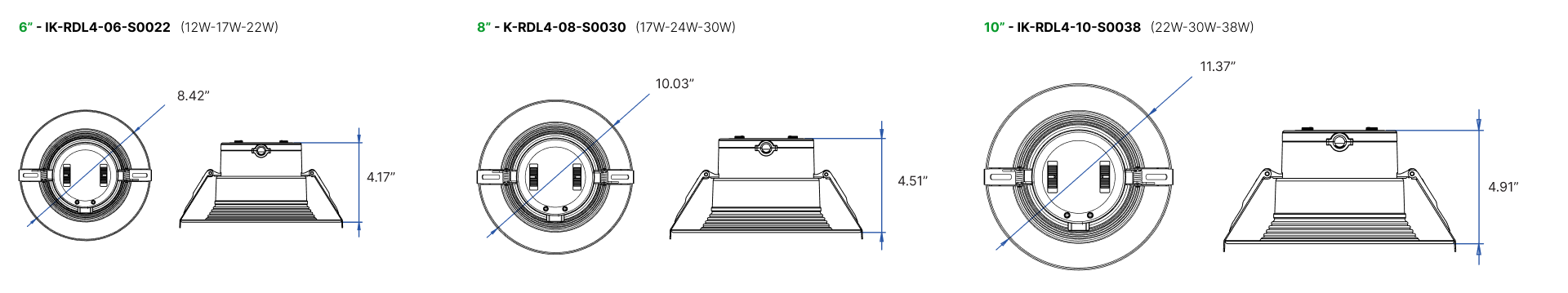

Dimensions

Product Ordering Information

Typical order example: IK-RDL4-06-S0022-MV-D-CCT-WD-00-WH-BFU

Luminaire Family Electrical / Lighting Performance Construction
IK RDL4     MV D CCT WD 0 WH BFU
Brand Family/Version Size Power (W) Volatge (V)  Dimming CCT (K) Distribution Driver Finish Manufacturer
IK
IKIO
RDL4
Orwin Downlight
06
6”
S0022
12W-17W-22W
MV
120V-277V
D
Dimmable
CCT
2700K-3000K-3500K-4000K-5000K
WD
Wide Distribution
00 WH
White
BFU
Bright Future USA, INC
08
8”
S0022
17W-24W-30W
10
10”
S0022
22W-30W-38W
