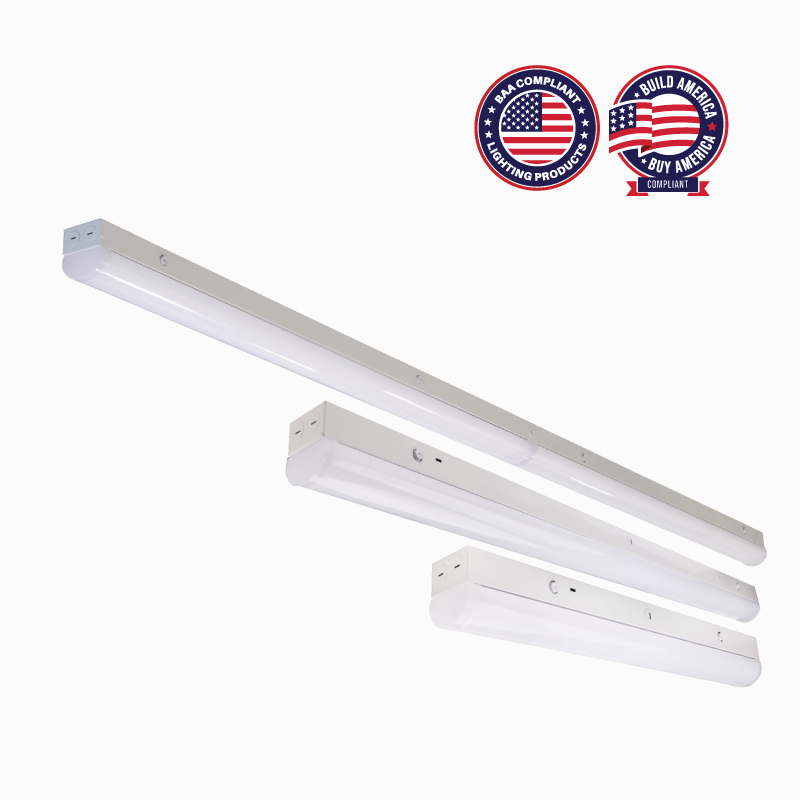

Apex Linear Low Bay

The Apex Linear Low Bay integrates sensor-enabled lighting control,
optimizing energy usage.

Inquire Now
Spec Sheet
IES Files
LM79 Report
LM80 Report
Warranty Document
Installation File

overview

Power
Selectable		 2’ : 15W-20W-25W
4’ : 20W-30W-40W
8’ : 50W-60W-70W
Voltage AC 120-277V, 50/60 Hz
Power Factor 0.9
Surge Protection L/N-PE: 2kV, L-N: 1kV
Efficacy Up to 148lm/W
CCT Selectable 3000K-4000K-5000K
Color Rendering (CRI) 84
R9 (Red Value) 11
R13 (Skin Tones) 85-87-83
Beam Angle 130°
Light Distribution Type I
Dimmable Continuous Dimming to 10% or Below
Operating Temperature -31ºF ~ +113ºF
Suitable Location DAMP
Ingress Protection Rating (IP) IPX4
Average Life (Hours) 50,000
LED Light Source Lumileds SMD2835
Driver Becky - BQE65-1250-52-PV-S1S2
Housing Iron
Cover Material Polycarbonate (Round)
Diffuser Frosted
Finish White
Product Details Specifications Dimensions Ordering Information

Product Details

Product Description

The Apex Linear Low Bay is a great lighting solution for high-traffic environments. Its integrated sensor enables smart lighting control, optimizing energy usage through automated adjustments based on occupancy or daylight. Delivering superior efficacy and uniform illumination, Apex enhances visibility and safety. Built for durability, it meets the highest industry standards for performance and compliance, making it an asset for federal projects.

Features

  • Premium quality with BAA & BABAA compliance, designed and manufactured using Tier-1 domestically sourced materials to meet the 65% federal procurement mandate.
  • Advanced CCT and power selectability allows precise adjustments for varied applications, validated through spectrometer and photometric testing.
  • Integrated sensor technology enables smart lighting control, automating adjustments to enhance energy efficiency and reduce manual intervention.
  • Equipped with 0-10V dimming functionality for seamless integration with standard lighting control systems.

Application Areas

Larger Warehouses, Retail Spaces, Commercial Buildings, Walkways, Residential Spaces, General Areas

Apex

Product Specifications



Part Number Size Power Selectable Voltage Lumen Output Efficacy CRI Sensor CCT Selectable THD Light Distribution
  ft W V lm lm/W     K
IK-LLB1-02-S0025-MV-D-CCT-WD-09-WH-BFU-SF 2 15-20-25 120V-277V 2355-3140-3925 147.88 83 No 3000-4000-5000 15% Type I
IK-LLB1-04-S0040-MV-D-CCT-WD-09-WH-BFU-SF 4 20-30-40 120V-277V 2760-4140-5520 123.71 84 No 3000-4000-5000 15% Type I
IK-LLB1-08-S0070-MV-D-CCT-WD-09-WH-BFU-SF 8 50-60-70 120V-277V 6993-8392-10123 139.87 84 No 3000-4000-5000 15% Type I
IK-LLB1-08-S0070-MV-D-CCT-WD-09-WH-BFU-SFMWS 8 50-60-70 120V-277V 6993-8392-10123 139.87 84 Yes 3000-4000-5000 15% Type I

Dimensions

Product Ordering Information

Typical order example: IK-LLB1-02-S0025-MV-D-CCT-WD-09-WH-BFU-SF


Luminaire Family Electrical / Lighting Performance Construction
IK LLB1     MV D CCT WD 9 WH BFU SF
Brand Family/Version Size Power (W) Volatge (V)  Dimming CCT (K) Distribution Driver Finish Manufacturer Diffuser Sensor
IK
IKIO		 LLB1
Apex
Linear Low Bay		 02
2”		 S0025
12W-20W-26W		 MV
120V-277V		 D
Dimmable		 CCT
3000K-4000K-5000K		 WD
Wide Distribution 		 09
Becky		 WH
White		 BFU
Bright Future USA, INC		 SF
Frosted		 MWS
Microwave Motion Sensor
04
4”		 S0040
20W-30W-40W
08
8”		 S0070
50W-60W-70W
