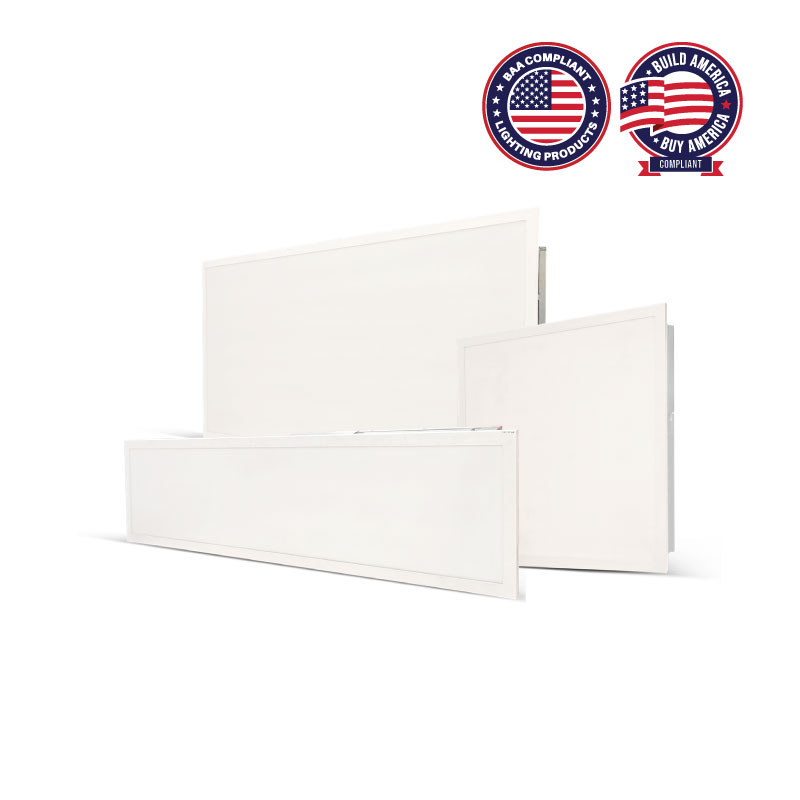

Delphi Back-Lit Panel Light

The Delphi Back-Lit Panel is designed to meet federal compliance standards,
featuring advanced CCT and power selectability

overview

Power Selectable 1’x4’ : 20W-30W-40W
2’x2’ : 20W-30W-40W
2’x4’ : 30W-40W-50W
Voltage AC 120-277V, 50/60 Hz
Power Factor 0.984
Efficacy Up to 134lm/W
CCT Selectable 3500K-4000K-5000K
R9 (Red Value) 10
R13 (Skin Tones) 85
Beam Angle 120°
Light Distribution Type VS
BUG Rating B2-U1-G1
Dimmable Continuous Dimming to 10% or Below
Operating  Temperature -14°F to +113°F
Suitable Location DAMP
Ingress Protection Rating (IP) IP40
Average Life (Hours) 50,000
LED Light Source BRIDGELUX 2835
Driver XZ-POWER
Power Supply Hard Wired
Housing Aluminum
Cover Material Polycarbonate
Diffuser Frosted
Finish White

Product Details

Product Description

The Delphi Back-Lit Panel is designed to meet federal compliance standards, featuring advanced CCT and power selectability for exceptional adaptability across commercial spaces. With superior optics and effective diffusion, it eliminates dark spots, delivering flicker-free illumination that enhances comfort and productivity. Leveraging streamlined production and rigorous quality validation, Delphi stands out for its unmatched durability and reliability in federal projects.

Features

  • Premium quality with BAA & BABAA compliance, engineered using Tier-1 domestically sourced materials for federal compliance.
  • Advanced CCT and power selectability ensures precise light management with consistent color quality.
  • Effective diffusion with precision-crafted lenses foruniform illumination and smooth light output.
  • Dimming-capable (0-10V) for seamless integration with standard lighting control systems.

Application Areas

  • Offices
  • Schools
  • Hospitals
  • Retail Stores
  • Airports
  • Commercial Spaces
  • Lobbies
Delphi

Product Specifications



Part Number Power Selectable (Options) Voltage Lumens Output Efficacy CRI Current CCT  Selectable THD Light  Distrubution
  W V lm lm/W   A K
IK-BPL1-14-S0040-MV-D-CCT-WD-05-WH-BFU 20 120V-277V 2500 125 80 0.16 3500-4000-5000 15% Type VS
30 3750
40 5000
IK-BPL1-22-S0040-MV-D-CCT-WD-05-WH-BFU 20 120V-277V 2769 134 85 0.16 3500-4000-5000 10.40% Type VS
30 4013
40 5275
IK-BPL1-24-S0050-MV-D-CCT-WD-05-WH-BFU 30 120V-277V 4122 131 84 0.2 3500-4000-5000 9.90% Type VS
40 5215
50 6443

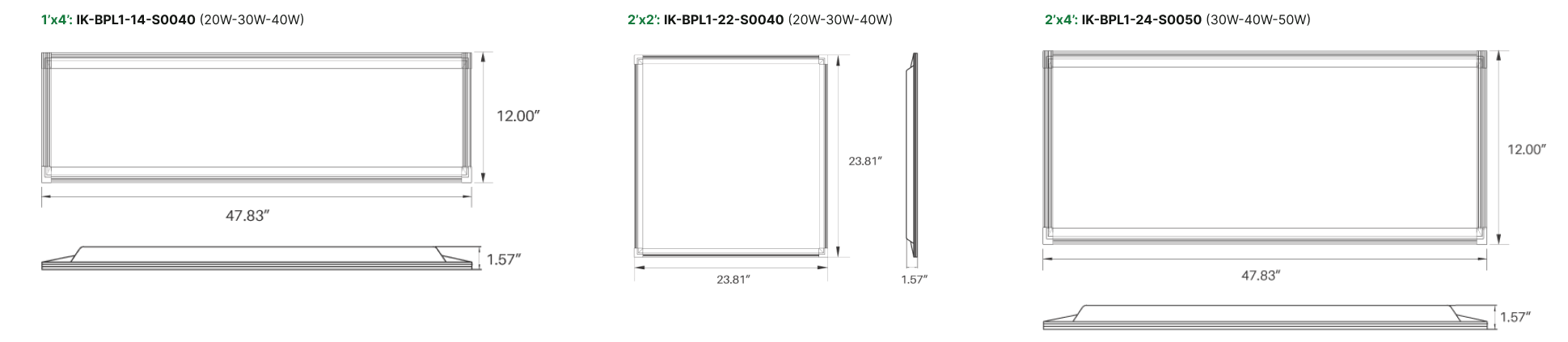

Dimensions

Product Ordering Information

Typical order example: IK-BPL1-14-S0040-MV-D-CCT-WD-05-WH-BFU


 Luminaire Family Electrical / Lighting Performance Construction
 IK BPL1     MV D CCT WD 5 WH BFU
 Brand Family/Version Size Power (W) Volatge (V)  Dimming CCT (K) Distribution Driver Finish Manufacturer
 IK
IKIO
BPL1
Delphi Back-lit Panel Light
14
1’x4’
S0040
20W-30W-40W
MV
120V-277V
D
Dimmable
CCT
3500K-4000K-5000K
WD
Wide Distribution
05
XZ-POWER
WH
White
BFU
Bright Future USA, INC
22
2’x2’
S0040
20W-30W-40W
24
2’x4’
S0050
30W-40W-50W
