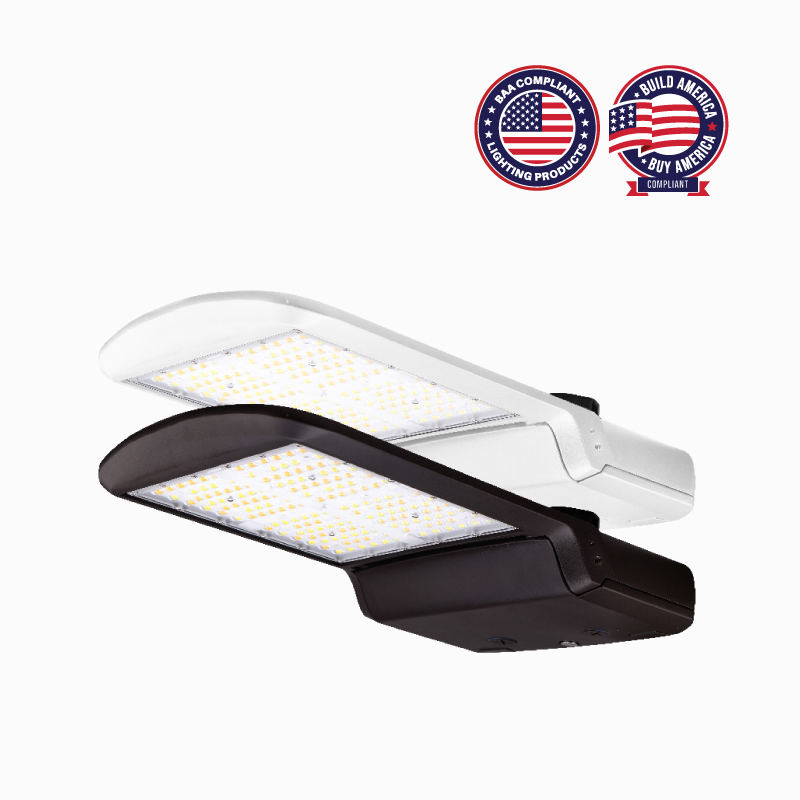

Areon Area Luminaire

The Areon Area Luminaire ensures exceptional performance with
power and CCT selectability, and high-efficacy output.

Inquire Now
Spec Sheet
IES Files
LM79 Report
LM80 Report
Warranty Document
Installation File

overview

Power
Selectable		 Variant 1: 70W-100W-150W
Variant 2: 150W-200W-240W-300W
Voltage AC 100-277V or 277-480V, 50/60 Hz
Power Factor 0.9
Efficacy Up to 134lm/W
CCT Selectable 3000K-4000K-5000K
R9 (Red Value) -35
R13 (Skin Tones) 69-72-70
Beam Angle 150° x  90°
Light Distribution TYPE III
BUG Rating B3-U0-G3
Dimmable Continuous Dimming to 10% or Below
Operating  -400F ~ +1220F (Without Motion Sensor)
Temperature -310F ~ +1220F (With Motion Sensor)
Suitable Location WET
Ingress Protection Rating (IP) IP65
Impact Protection Rating (IK) IK08
Average Life (Hours) 50,000
LED Source Lumileds 2835
Driver SOSEN: SS-160NH-E260BH
Power Supply Hard Wired
Housing Die-cast Aluminum
Cover Material Polycarbonate
Diffuser Clear
Finish Bronze | White
EPA 1.2 ft²
Product Details Specifications Dimensions Ordering Information

Product Details

Product Description

Areon Area Luminaire, crafted with Tier-1 domestically sourced components, ensures exceptional reliability and performance. Designed for versatility, it offers power and CCT selectability and high efficacy light output. Its IP65-rated diecast aluminum housing ensures durable performance in challenging outdoor environments. Leveraging streamlined production systems and rigorous quality validation, Areon meets industry and compliance standards for federal projects.

Features

  • Premium quality with BAA & BABAA compliance, crafted using Tier-1 domestically sourced materials to meet the 65% federal procurement mandate.
  • Advanced CCT and power selectability enables precise light control, validated through photometric testing.
  • IP65-rated die-cast aluminum housing provides exceptional durability and protection in demanding conditions.
  • Equipped with 0-10V dimming functionality for seamless compatibility with standard lighting control systems.

Application Areas

Parking Lots, Auto Dealerships, Pathways, Roadways, Recreational Venues, and Other General Areas; Can Also be Used as Flood Lights.

Areon

Product Specifications



Part Number Power Selectable (Options) Voltage Lumen Output Efficacy CRI Current CCT Selectable THD Light Distrubution
  W V lm lm/W   A K
IK-ARL2-01-S0150-MV-D-CCT-T3-01-XX-BFU 70 120V-277V 9379 134 70 0.61 3000-4000-5000 15% TYPE III
100 13398
150 20261
IK-ARL2-02-S0300-MV-D-CCT-T3-01-XX-BFU 150 120V-277V 19439 130 70 1.23 3000-4000-5000 15% TYPE III
200 25918
240 31102
300 39647
IK-ARL2-02-S0300-HV-D-CCT-T3-01-XX-BFU 150 277V-480V 19794 132 70 0.69 3000-4000-5000 15% TYPE III
200 26392
240 31671
300 40548

Dimensions

Product Ordering Information

Typical order example: IK-ARL2-02-S0300-HV-D-CCT-T3-01-BR-BFU


Luminaire Family Electrical / Lighting Performance Construction
IK ALR2       D CCT T3 1   BFU
Brand Family/Version Variant Power (W) Volatge (V)  Dimming CCT (K) Distribution Driver Finish Manufacturer
IK
IKIO		 ALR2
Aeron Area Luminaire		 1 S0150
150W-200W-240W-300W		 MV
120V-277V

HV
277V-480V		 D
Dimmable		 CCT
3000K-4000K-5000K		 T3
T3		 01
Sosen		 BR
Bronze

WH
White		 BFU
Bright Future USA, INC
2 S0200
150W-200W-240W-300W
