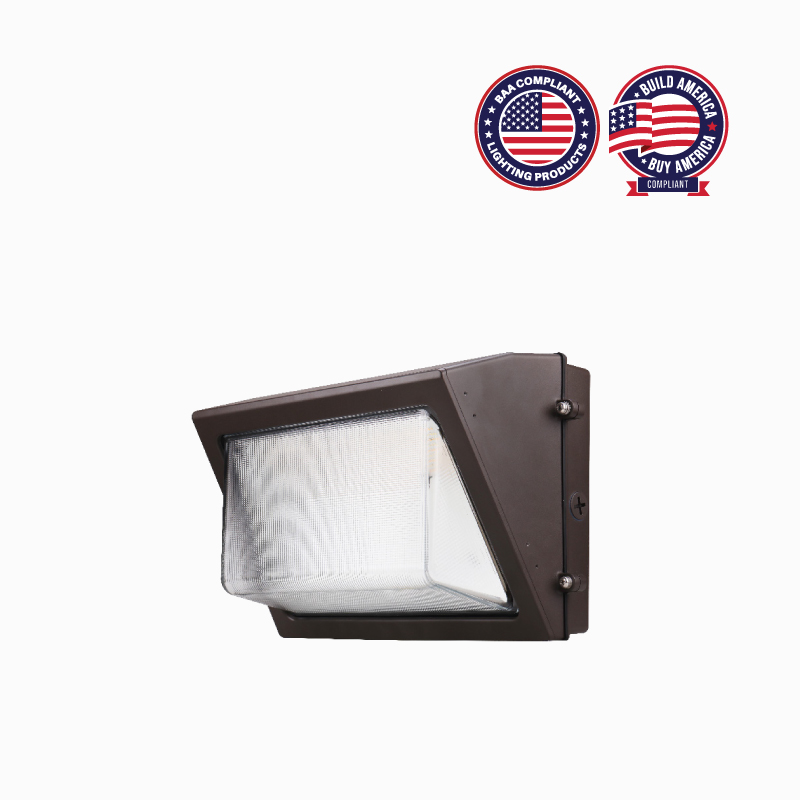

Edin Wall Pack (Semi Cutoff)

The Edin Wall Pack is an outdoor lighting solution for building perimeters,
parking lots, and security applications.

overview

Power
Selectable
Variant 1: 30W-40W-50W-60W
Variant 2: 70W-85W-100W-120W
Voltage AC 100-277V, 50/60 Hz
Power Factor 0.9
Surge Protection 6 kV
Efficacy Up to 140lm/W
CCT Selectable 3000K-4000K-5000K
R9 (Red Value) -3
R13 (Skin Tones) 81-84-83
Beam Angle 105°
Light Distribution Type II
BUG Rating B2-U4-G4
Dimmable Continuous Dimming to 10% or Below
Operating Temperature -40ºF ~ +122ºF
Suitable Location WET
Ingress Protection Rating (IP) IP65
Impact Protection Rating (IK) IK05
Average Life (Hours) 50,000
LED Source Lumileds SMD 2835
Driver FAHOLD
Power Supply Hard Wired
Housing Die-cast Aluminum
Cover Material Glass
Diffuser Frosted
Finish Bronze

Product Details

Product Description

The Edin Wall Pack is an outdoor lighting solution for building perimeters, parking lots, and security applications. Its semi-cutoff design ensures focused light distribution while the high efficacy and superior CRI enhance visibility and safety in public spaces. The IP65-rated construction makes it weatherproof, ensuring long-lasting performance even in harsh outdoor conditions. Built for sustainability and compliance, it’s a dependable choice for federal projects.

Features

  • Premium quality with BAA & BABAA compliance, engineered with Tier-1 domestically sourced materials to meet the 65% federal procurement mandate.
  • Advanced CCT and power selectability ensures precise light management with consistent color quality, validated through spectrometer and photometric testing.
  • IP65-rated design ensures weatherproof durability, making it suitable for wet locations and outdoor applications.
  • Equipped with 0-10V dimming capability for seamless integration with standard lighting control systems.

Application Areas

Building Facades, Entrances, Courtyards, Commercial Spaces, Industrial Areas, Retail and Hospitality Buildings, Landscape Lighting

Edin

Product Specifications



Part Number Power Selectable (Options) Voltage Lumen Output Efficacy CRI Current CCT Selectable THD Light Distrubution
  W V lm lm/W   A K
IK-WPKSC-01-S060-MV-D-CCT-T2-08-BR-BFU 30 120V-277V 4195 140 80 0.25 3000-4000-5000 15% Type II
40 5593
50 6991
60 8762
IK-WPKSC-01-S0120-MV-D-CCT-T2-08-BR-BFU 70 120V-277V 9712 139 82 0.5 3000-4000-5000 15% Type II
85 11793
100 13874
120 17138

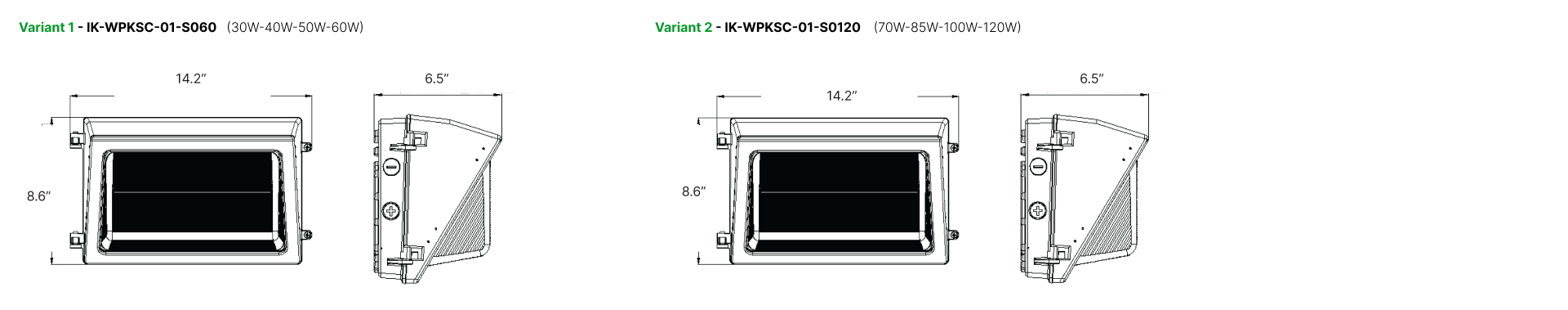

Dimensions

Product Ordering Information

Typical order example: IK-WPKSC-01-S060-MV-D-CCT-T2-08-BR-BFU


Luminaire Family Electrical / Lighting Performance Construction
IK WPKSC 1   MV D CCT T2 8 BR BFU
Brand Family/Version Variant Power (W) Volatge (V)  Dimming CCT (K) Distribution Driver Finish Manufacturer
IK
IKIO
WPKSC
Edin
Wall Pack (Semi Cutoff
1 S060
30W-40W-50W-60W
MV
120V-277V
D
Dimmable
CCT
3500K-4000K-5000K
T2
Type II
08
FAHOLD
BR
Bronze
BFU
Bright Future USA, INC
S0120
70W-85W-100W-120W
