Delphi Architectural Troffer

The Delphi Architectural Troffer is a versatile lighting solution crafted from Tier-1 domestically sourced components, delivering exceptional reliability and performance.

Inquire Now
Spec Sheet
IES Files
LM79 Report
LM80 Report
Warranty Document
Installation File

overview

Power
Selectable		 1’x4’ : 20W-25W-30W
2’x2’ : 20W-25W-30W
2’x4’ : 25W-30W-35W
Voltage AC 120-277V, 50/60 Hz
Power Factor 0.9
Efficacy Up to 128lm/W
CCT Selectable 3500K-4000K-5000K
Color Rendering (CRI) 82
R9 (Red Value) 8
R13 (Skin Tones) 84-85-83
Beam Angle 120°
Light Distribution Type VS
BUG Rating B2-U1-G1
Dimmable Continuous Dimming to 10% or Below



Operating Temperature -4ºF ~ +122ºF
Suitable Location DAMP
Ingress Protection Rating (IP) IP20
Average Life (Hours) 50,000
LED Light Source SEOUL 3528
Driver Simon
Power Supply Hard Wired
Housing Galvanized Steel Plate
Cover Material Polycarbonate (PMMA)
Diffuser Frosted
Finish White





Product Details Specifications Dimensions Ordering Information

Product Details

Product Description

The Delphi Architectural Troffer is a versatile lighting solution crafted from Tier-1 domestically sourced components, delivering exceptional reliability and performance. It offers robust functionality, featuring advanced CCT and power selectability, along with seamless dimming control integration. With high efficacy and flicker-free illumination, it enhances productivity and visual comfort, making it an excellent choice for premium lighting needs, especially in federal projects.

Features

  • Premium quality with BAA & BABAA compliance, using Tier-1 domestically sourced materials to meet federal procurement mandates.
  • CCT and power selectability ensures precise light management with consistent color quality, validated through photometric testing.
  • Effective light diffusion with precision-crafted lenses ensures uniform illumination and eliminates dark spots.
  • Equipped with 0-10V dimming capability for smooth integration with standard lighting control systems.

Application Areas

Offices, Hallways, Multipurpose Rooms, Conference Rooms, Retail Stores, Hospitals, Commercial Areas

Delphi

Product Specifications



Part Number Power Selectable (Options) Voltage Lumen Output Efficacy CRI Current CCT Selectable THD Light Distrubution
  W V lm lm/W   A K
IK-ATR1-14-S0030-MV-D-CCT-WD-06-WH-BFU 20 120V-277V 2760 128 82 0.12 3500-4000-5000 10% Type VS
25 3200
30 3900
IK-ATR1-22-S0030-MV-D-CCT-WD-06-WH-BFU 20 120V-277V 2760 128 82 0.12 3500-4000-5000 10% Type VS
25 3200
30 3900
IK-ATR1-24-S0035-MV-D-CCT-WD-06-WH-BFU 25 120V-277V 3350 128 82 0.14 3500-4000-5000 10% Type VS
30 3840
35 4500

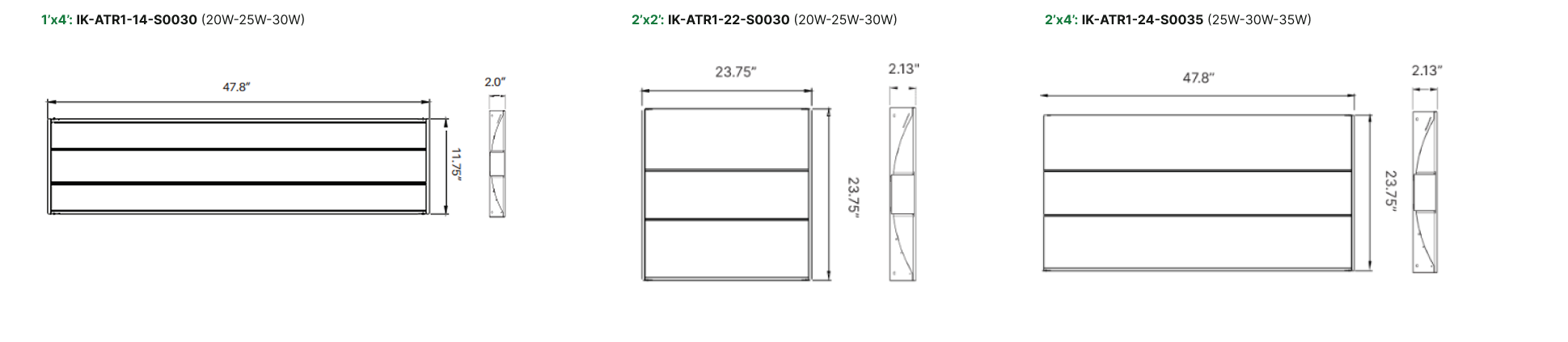

Dimensions

Product Ordering Information

Typical order example: IK-ATR1-14-S0030-MV-D-CCT-WD-06-WH-BFU


Luminaire Family Electrical / Lighting Performance Construction
IK ATR1     MV D CCT WD 6 WH BFU
Brand Family/Version Size Power (W) Volatge (V)  Dimming CCT (K) Distribution Driver Finish Manufacturer
IK
IKIO		 ATR1
Delphi Architectural
Troffer		 14
1’x4’		 S0030
20W-25W-30W		 MV
120V-277V		 D
Dimmable		 CCT
3500K-4000K-5000K		 WD
Wide Distribution 		 06
Simon 		 WH
White		 BFU
Bright Future USA, INC
22
2’x2’		 S0030
20W-25W-30W
24
2’x4’		 S0035
20W-25W-30W
