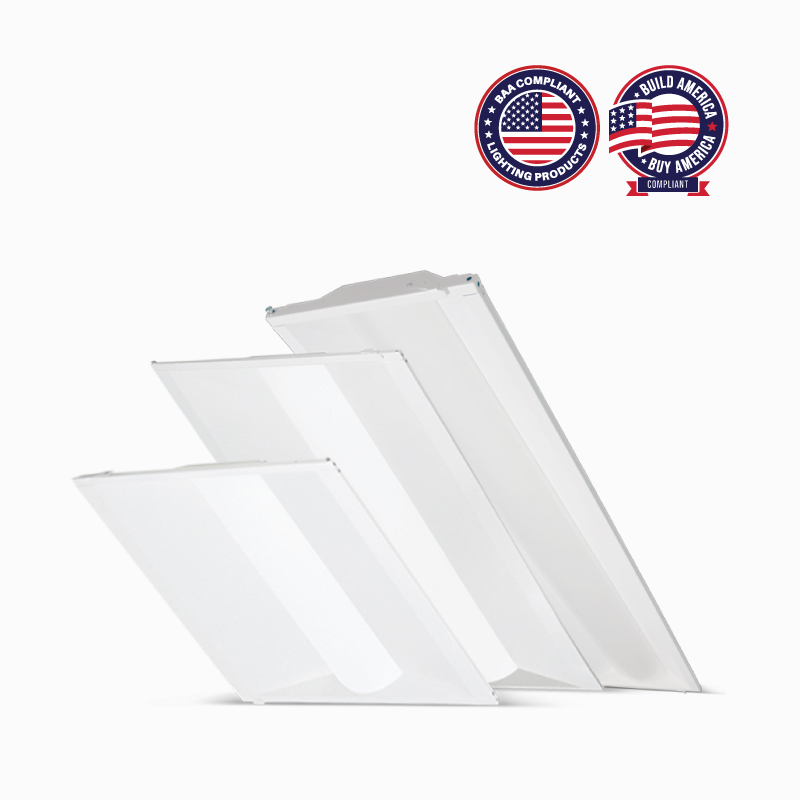

Delphi Retrofit Troffer

The Delphi Retrofit Troffer is perfect for retrofit projects with its easy-to-install design that minimizes downtime and eliminates the need for extensive modifications.

Inquire Now
Spec Sheet
IES Files
LM79 Report
LM80 Report
Warranty Document
Installation File

overview

Power
Selectable		 1’x4’ : 20W-25W-30W
2’x2’ : 20W-25W-30W
2’x4’ : 25W-30W-35W
Voltage AC 120-277V, 50/60 Hz
Power Factor 0.9
Efficacy Up to 128lm/W
CCT Selectable 3500K-4000K-5000K
Color Rendering (CRI) 82
R9 (Red Value) 5
R13 (Skin Tones) 83
Beam Angle 110°
Dimmable Continuous Dimming to 10% or Below
Operating Temperature -4ºF ~ +122ºF



Suitable Location DAMP
Ingress Protection Rating (IP) IP20
Average Life (Hours) 50,000
LED Light Source SEOUL 3528
Driver Simon
Power Supply Hard Wire
Housing Steel Sheet
Cover Material PMMA
Diffuser Frosted
Finish White



Product Details Specifications Dimensions Ordering Information

Product Details

Product Description

The Delphi Retrofit Troffer is perfect for retrofit projects with its easy-to-install design that minimizes downtime and eliminates the need for extensive modifications. Offering superior efficacy and excellent light diffusion, it enhances visibility in workplaces, schools, and indoor spaces. Crafted with Tier-1 domestically sourced components, it delivers enduring performance while meeting stringent standards of federal projects.

Features

  • Premium quality with BAA & BABAA compliance, using Tier-1 domestically sourced materials to meet federal procurement mandates.
  • CCT and power selectability ensures precise light management with consistent color quality, validated through photometric testing.
  • Effective light diffusion with precision-crafted lenses ensures uniform illumination and eliminates dark spots.
  • Equipped with 0-10V dimming capability for smooth integration with standard lighting control systems.

Application Areas

Offices, Hallways, Multipurpose Rooms, Conference Rooms, Retail Stores, Hospitals, Commercial Areas

Delphi

Product Specifications



Part Number Power Selectable (Options) Voltage Lumens Output Efficacy CRI Current CCT Selectable THD
W V lm lm/W A K
IK-RTR1-14-S0030-MV-D-CCT-WD-06-WH-BFU 20 120V-277V 2660 127 81 0.11 3500-4000-5000 8.50%
25 3175
30 3870
IK-RTR1-22-S0030-MV-D-CCT-WD-06-WH-BFU 20 120V-277V 2600 124 82 0.11 3500-4000-5000 8.90%
25 3100
30 3720
IK-RTR1-24-S0035-MV-D-CCT-WD-06-WH-BFU 25 120V-277V 3400 128 81 0.13 3500-4000-5000 9.30%
30 3840
35 4480

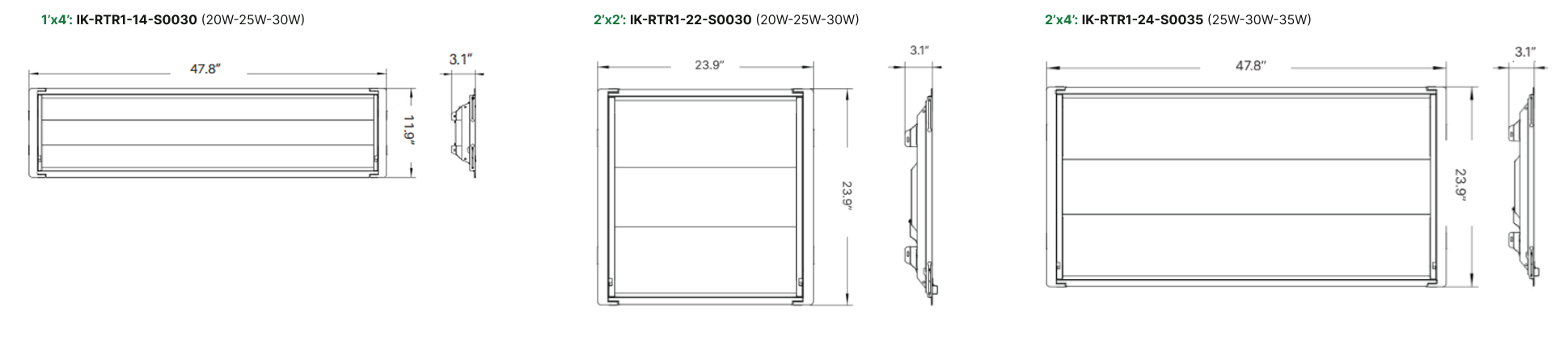

Dimensions

Product Ordering Information

Typical order example: IK-RTR1-14-S0030-MV-D-CCT-WD-06-WH-BFU


Luminaire Family Electrical / Lighting Performance Construction
IK RTR1     MV D CCT WD 6 WH BFU
Brand Family/Version Size Power (W) Volatge (V)  Dimming CCT (K) Distribution Driver Finish Manufacturer
IK
IKIO		 RTR1
Delphi Retrofit Troffer		 14
1’x4’		 S0030
20W-25W-30W		 MV
120V-277V		 D
Dimmable		 CCT
3500K-4000K-5000K		 WD
Wide Distribution 		 06
Simon 		 WH
White		 BFU
Bright Future USA, INC
22
2’x2’		 S0030
20W-25W-30W
24
2’x4’		 S0035
25W-30W-35W
