Amplin Gen2 Linear High Bay

The Amplin Gen 2 Linear High Bay is a federally compliant lighting solution for warehouses, manufacturing plants, and high-ceiling applications.

Inquire Now
Spec Sheet
IES Files
LM79 Report
LM80 Report
Warranty Document
Installation File

overview

Power
Selectable		 2’ : 70W-100W-150W
4’ : 100W-150W-200W
4’ : 200W-240W-300W
Voltage AC 100-277V, 50/60 Hz
Power Factor 0.967
Surge Protection 5kV
Efficacy Up to 152lm/W
CCT  5000K
R9 (Red Value) 14
R13 (Skin Tones) 86
Beam Angle 120°
Light Distribution Type VS
BUG Rating B4-U2-G2
Dimmable Continuous Dimming to 10% or Below
Operating  Temperature -10°F ~ +120°F
Suitable Location DAMP
Ingress Protection Rating (IP) IP54
Average Life (Hours) 75,000
LED Source Bridgelux 2835
Driver Inventronics
Power Supply Hard Wired
Housing Aluminum
Cover Material Polycarbonate
Diffuser Frosted
Finish White (Powder Coated)
Product Details Specifications Dimensions Ordering Information

Product Details

Product Description

The Amplin Gen 2 Linear High Bay is a federally compliant lighting solution for warehouses, manufacturing plants, and high-ceiling applications. Its power selectability ensures adaptability for diverse lighting needs, while precisionplaced LEDs provide uniform illumination with high color accuracy. The 5kV surge protection safeguards against voltage fluctuations, ensuring operational reliability. Designed with compliance in mind, it’s a dependable choice for federal projects.

Features

  • Premium quality with BAA & BABAA compliance, crafted using Tier-1 domestically sourced materials in a state-of-the-art facility to meet the 65% federal procurement mandate.
  • Advanced power selectability enables seamless customization for diverse lighting scenarios.
  • High-grade optics and precision-placed LEDs deliver up to 75,000 hours of flicker-free, uniform illumination with a high CRI for vivid color rendering.
  • Integrated 6kV surge protection safeguards against voltage fluctuations, enhancing operational safety and product reliability.

Application Areas

Manufacturing Facilities, Warehouses, Gymnasiums, Athletic Facilities, Workshops, Large Areas, Parking Lots

Amplin Gen2

Product Specifications

Part Number Power Selectable (Options) Voltage Lumen Output Efficacy CRI Current CCT  THD Light Distrubution
  W V lm lm/W   A K
IK-LHB2-02-S0150-MV-D-50K-WD-02-WH-BFU 70 120V-277V 11358 152 85 0.6 5000 8.20% Type VS
100 15144
150 21419
IK-LHB2-04-S0200-MV-D-50K-WD-02-WH-BFU 100 120V-277V 14877 149 86 0.8 5000 12.80% Type VS
150 22316
200 29973
IK-LHB2-04-S0300-MV-D-50K-WD-02-WH-BFU 200 120V-277V 27000 135 86 1.2 5000 9.70% Type VS
240 32400
300 40500

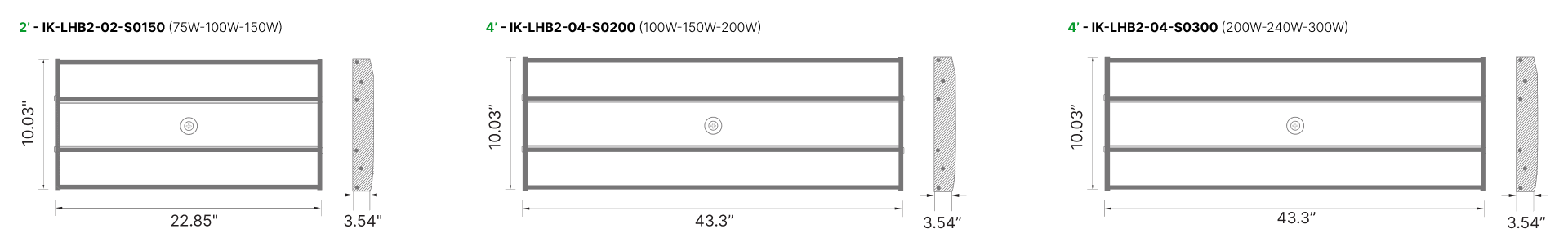

Dimensions

Product Ordering Information

Typical order example: IK-LHB2-02-S0150-MV-D-50K-WD-02-WH-BFU
Luminaire Family Electrical / Lighting Performance Construction
IK LHB2     MV D 50K WD 2 WH BFU
Brand Family/Version Size Power (W) Volatge (V)  Dimming CCT (K) Distribution Driver Finish Manufacturer
IK
IKIO		 LHB2
Amplin Gen2
Linear High Bay		 02
2”		 S0150
75W-100W-150W		 MV
120V-277V		 D
Dimmable		 50K
5000K		 WD
Wide Distribution 		 02
INVENTRONICS		 WH
White		 BFU
Bright Future USA, INC
04
4”		 S0200
100W-150W-200W
S0300
200W-240W-300W
