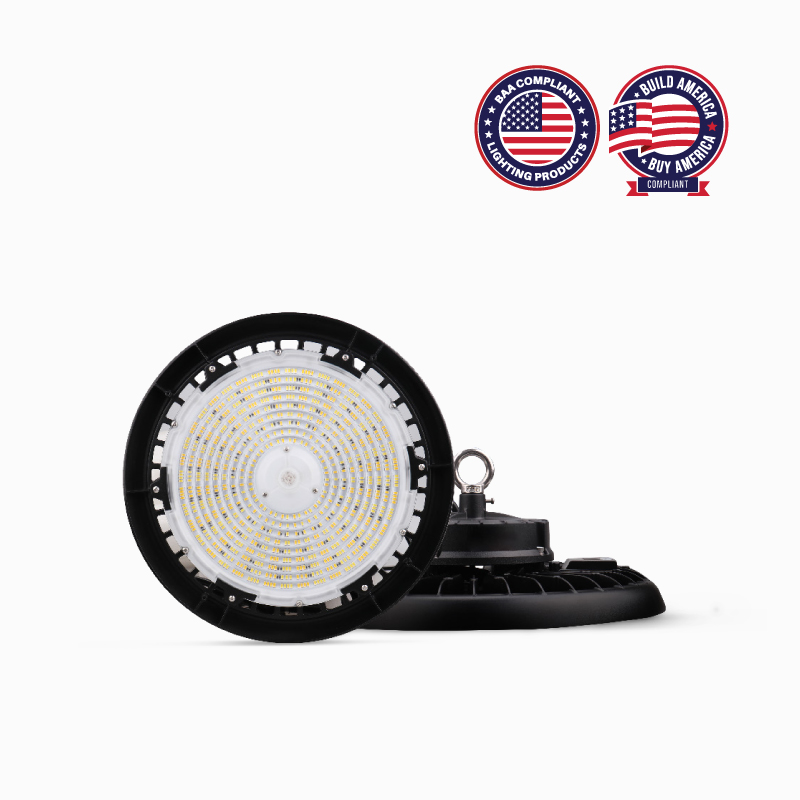

Upstar Round High Bay

The Upstar Round High Bay is an all-weather solution engineered
for large industrial settings.

Inquire Now
Spec Sheet
IES Files
LM79 Report
LM80 Report
Warranty Document
Installation File

overview

Power Selectable 100W-150W-200W-240W
Voltage AC 100-277V, 50/60 Hz
Power Factor 0.9
Surge Protection 6 kV
Efficacy 132lm/W
CCT Selectable 3500K-4000K-5000K
R9 (Red Value) 4
R13 (Skin Tones) 82-85-84
Beam Angle 90°
Light Distribution Type I
Dimmable Continuous Dimming to 10% or Below
Operating Temperature -40ºF ~ +122ºF Without Motion Sensor
Suitable Location WET
Ingress Protection Rating (IP) IP65
Impact Protection Rating (IK) IK08
Average Life (Hours) 50,000
LED Source LUMILEDS 2835
Driver SOSEN SS-240CNL-E260BH
Power Supply Hard Wired
Housing Die-cast Aluminum
Cover Material Polycarbonate
Diffuser Clear
Finish Black
Product Details Specifications Dimensions Ordering Information

Product Details

Product Description

The Upstar Round High Bay is an all-weather solution engineered for large industrial settings. Its die-cast aluminum housing and IP65 rating ensure durability in harsh environments, while power and CCT selectability make it versatile for various applications. Designed for quick installation, it reduces setup time, allowing facilities to achieve operational efficiency with minimal disruption. A perfect industrial luminaire for federal projects.

Features

  • Premium quality with BAA & BABAA compliance, crafted using Tier-1 domestically sourced materials to meet the 65% federal procurement mandate.
  • Advanced CCT and power selectability enables precise light management, validated through spectrometer and photometric testing.
  • Robust powder-coated die-cast aluminum housing, polycarbonate lens, and heat sinks ensure long-lasting durability and thermal efficiency.
  • 6kV surge protection and IP65 rating provide weatherproof reliability for indoor and outdoor applications.

Application Areas

Manufacturing Facilities, Warehouses, Gymnasiums, Athletic Facilities, Workshops, Large Areas

Upstar

Product Specifications



Part Number Power Selectable (Options) Voltage Lumen Output Efficacy CRI Current CCT Selectable THD Light Distrubution
  W V lm lm/W   A K
IK-UHB3-02-S0240-MV-D-CCT-WD-01-BK-BFU 100 120V-277V 13148 132 84 0.99 3500-4000-5000 15% Type I
150 19722
200 26296
240 32365

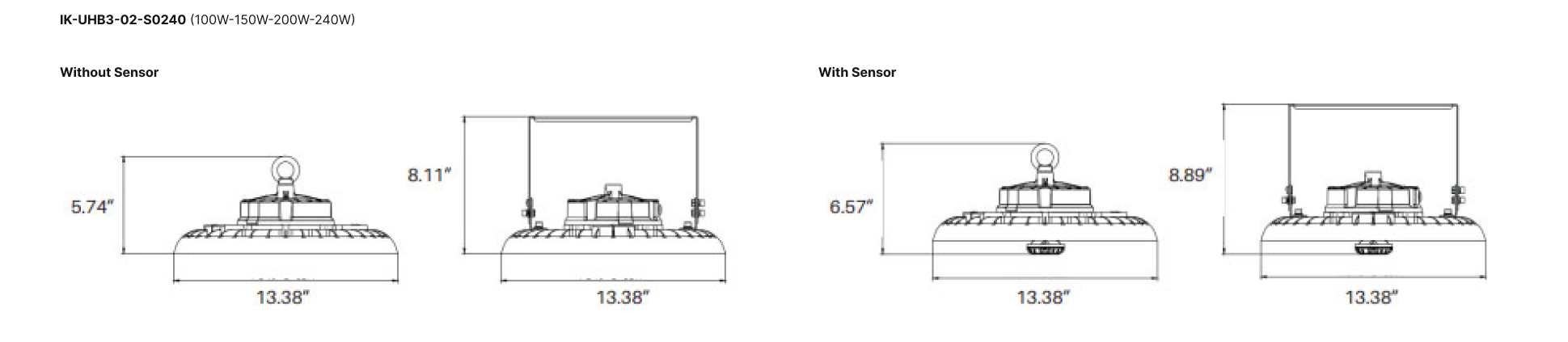

Dimensions

Product Ordering Information

Typical order example: IK-UHB3-02-S0240-MV-D-CCT-WD-01-BK-BFU


Luminaire Family Electrical / Lighting Performance Construction
IK UHB3 2 S0240 MV D CCT WD 1 BL BFU
Brand Family/Version Variant Power (W) Volatge (V)  Dimming CCT (K) Distribution Driver Finish Manufacturer
IK
IKIO		 UHB3
Upstar
Round High Bay		 2 S0240
100W-150W-200W-240W		 MV
120V-277V		 D
Dimmable		 CCT
3500K-4000K-5000K		 WD
Wide Distribution		 01
SOSEN		 BR
Black		 BFU
