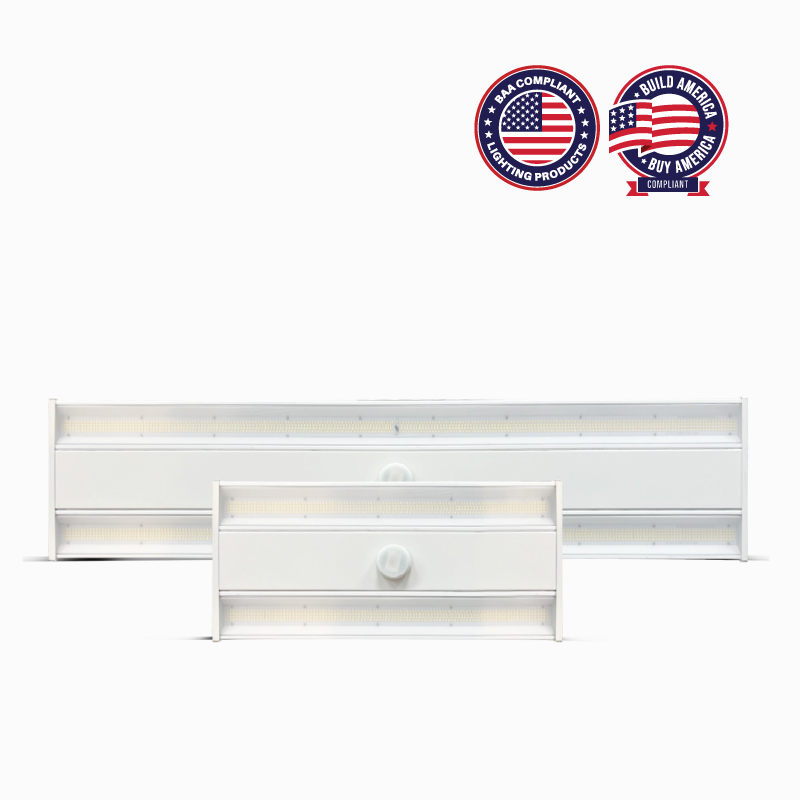

Amplin Linear High Bay

The Amplin Linear High Bay is a federal compliant solution designed for highceiling applications such as warehouses and manufacturing facilities.

Inquire Now
Spec Sheet
IES Files
LM79 Report
LM80 Report
Warranty Document
Installation File

overview

Power  100W | 150W | 200W | 240W | 300W
Voltage 277-480V, 50/60 Hz
Power Factor 0.973
Surge Protection 5kV
Efficacy Up to 149lm/W
CCT  5000K
Color Rendering (CRI) 85
R9 (Red Value) 22
R13 (Skin Tones) 84
Beam Angle 120°
Light Distribution Type VS
BUG Rating B4-U2-G2
Dimmable Continuous Dimming to 10% or Below
Operating Temperature -10°F ~ +120°F
Suitable Location DAMP
Ingress Protection Rating (IP) IP54
Average Life (Hours) 75,000
LED Source Bridgelux 2835
Driver Inventronics
Power Supply Hard Wired
Housing Aluminum
Cover Material Polycarbonate
Diffuser Frosted
Finish White (Powder Coated)
Product Details Specifications Dimensions Ordering Information

Product Details

Product Description

The Amplin Linear High Bay is a federal compliant solution designed for highceiling applications such as warehouses and manufacturing facilities. It offers wide-angle illumination for varied mounting heights. Its frosted lenses and high-quality LEDs provide glare-free, uniform lighting, ensuring comfort and productivity. Equipped with integrated surge protection and advanced thermal management, it guarantees stable operation and high-quality illumination in federal projects.

Features

  • Premium quality with BAA & BABAA compliance, manufactured using Tier-1 domestically sourced materials to exceed the 65% federal procurement standard for performance and reliability.
  • Precision-engineered optical lenses provide wide-angle light distribution, designed and validated for maximum uniformity across varying mounting heights.
  • Equipped with frosted lenses and high-efficacy LEDs, delivering consistent, flicker-free illumination.

Application Areas

Manufacturing Facilities, Warehouses, Gymnasiums, Athletic Facilities, Workshops, Large Areas, Parking Lots

Amplin

Product Specifications



Part Number Power Voltage Lumen Output Efficacy CRI CCT  Current THD Light Distribution
  W V lm lm/W   K A
IK-LHB1-02-F0100-HV-D-50K-WD-02-WH-BFU 100 277-480V 14805 148 85 5000 0.22 13.40% Type VS
IK-LHB1-02-F0150-HV-D-50K-WD-02-WH-BFU 150 277-480V 21905 146 84 5000 0.32 6.70% Type VS
IK-LHB1-04-F0200-HV-D-50K-WD-02-WH-BFU 200 277-480V 28193 141 86 5000 0.44 8.80% Type VS
IK-LHB1-04-F0240-HV-D-50K-WD-02-WH-BFU 240 277-480V 35532 148 85 5000 0.52 6.40% Type VS
IK-LHB1-04-F0300-HV-D-50K-WD-02-WH-BFU 300 277-480V 44101 147 84 5000 0.64 7.90% Type VS

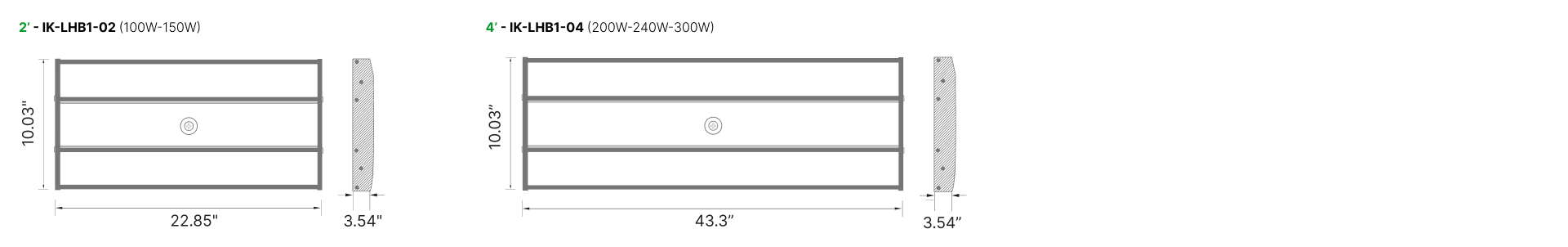

Dimensions

Product Ordering Information

Typical order example: IK-LHB1-02-F0100-HV-D-50K-WD-02-WH-BFU


Luminaire Family Electrical / Lighting Performance Construction
IK LHB1     HV D 50K WD 2 WH BFU
Brand Family/Version Size Power (W) Volatge (V)  Dimming CCT (K) Distribution Driver Finish Manufacturer
IK
IKIO		 LHB1
Amplin
Linear High Bay		 02
2”		 F0100
100W		 HV
277-480V		 D
Dimmable		 50K
5000K		 WD
Wide Distribution 		 02
INVENTRONICS		 WH
White		 BFU
Bright Future USA, INC
F0150
150W
04
4”		 F0200
100W
F0240
240W
F0300
300W
